HAST High Pressure Accelerated Aging Testing Chamber Corrosion Resistance and Aging Tester Equipment Air Tightness Test Machine

Type : Testing Machine

Accuracy Class : High Accuracy

Accuracy : /

Brand Name : HAIDA

Place of Origin : Guangdong, China

Application : Aging Testing, Corrosion Testing, Air Tightness Testing

customized support : OEM, ODM

power : 220V 50/60Hz

Protection Class : /

Voltage : 220 V

warranty : 1 Year

Temperature range : +105C~147C (Vapor temperature)

Temperature fluctuations : ±2C

Humidity range : 75%~100% (vapor humidity)

Humidity control stability : ±3%RH

Humidity distribution average : ±5%RH

Operating Pressure : 1.2~2.89kg(including l atm)

Time setting range : 0~999hours

Pressurization time : From 0.00kg~1.04kg/cm2,approx.45min

Controller model : PLC control

Internal dimension : Diameter 400*L500mm; Circular type chamber

MOQ : 1

Contact Now

HAST High Pressure Accelerated Aging Testing Chamber
Corrosion Resistance and Aging Tester Equipment Air Tightness Test Machine
HAST High Pressure Accelerated Aging Testing Chamber Corrosion Resistance and Aging Tester Equipment Air Tightness Test Machine
HD-E819
This product is suitable for national defense, aerospace, automotive parts, electronic parts, circuit boards, lighting products and other products for sealing performance testing. During product design stage, it quickly exposes defects and weaknesses of products, testing resistance to nastiness and air tightness.
Key Features
  • Adopt imported high-temperature solenoid valve double-way structure to reduce failure rate
  • Independent steam generation chamber to avoid direct steam impact on products
  • Labor-saving door lock structure for easy operation
  • Exhaust cold air system improves pressure stability
  • Ultra-long experimental operation time up to 1000 hours
  • Water level protection with sensor detection
  • Pressure resistance design: box body (140°C) 2.65kg, water pressure test 6kg
  • Two-stage pressure safety protection with combination controller and mechanical protection
  • Emergency safety device with two-stage automatic pressure discharge button
  • Full touch controller with USB export history capability
Technical Specifications
Items Description
Internal dimension Diameter 400*L500mm; Circular type chamber
External dimension Approx. 1150*980*1850mm (W*D*H)
Internal material SUS# 316 with thickness 3 mm
External material Stainless steel plate material
Insulation material Rock wool and rigid polyurethane foam insulation
Steam chamber heating tube Titanium tube heating, never rust
Controller model PLC control
Temperature range +105°C~147°C (Vapor temperature)
Temperature fluctuations ±2°C
Humidity range 75%~100% (vapor humidity)
Humidity control stability ±3%RH
Humidity distribution average ±5%RH
Operating Pressure 1.2~2.89kg (including 1 atm)
Time setting range 0~999 hours
Pressurization time From 0.00kg~1.04kg/cm², approx. 45min
Power supply Single phase 220V 50/60Hz
Safety Protection Features
  • Imported high-temperature resistant sealed solenoid valve with dual circuit structure to prevent pressure leakage
  • Comprehensive safety devices including overpressure protection, over-temperature protection, one-key pressure relief, and manual pressure relief
  • Counter-pressure door locking device prevents door opening when internal pressure exists

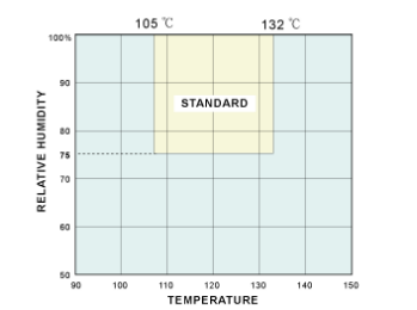

Temperature & Vapor Humidity Performance
HAST High Pressure Accelerated Aging Testing Chamber Corrosion Resistance and Aging Tester Equipment Air Tightness Test Machine
Our Service & Support
  • 48-hour response time for technical issues with solutions within 3 working days
  • Operation videos and English operation manuals provided
  • Video conference support available
  • Onsite services including installation, operation testing, technology training, and calibration
  • Daily maintenance and equipment maintenance support
  • Free technical training for visiting factories
  • 24-hour online contact support
  • Free software upgrades and comprehensive documentation
  • Multiple communication channels: social media, email, video conferencing
  • Free door-to-door service for device problem handling
