Bypass Diode Water Immersion Tank For Precise Temperature Control And Safety

Name: Bypass Diode Water Immersion Tank For Precise Temperature Control And Safety
Brand: HAIDA
Price: 1 USD

Buy cheap Bypass Diode Water Immersion Tank For Precise Temperature Control And Safety product

Max sample size : 300*400*100mm

Test Standard : IEC 60529 - IPX7

Power : Single phase, 220V 50Hz

Voltage : 220V Electrical Equipment

Protection Class : /

Application : PV

External Dimension : 1000*1000*1320mm

Sample weight : Maximum up to 100kg

MOQ : 1

Accuracy : Within ±15%

warranty : 1 Year

Sample Lifting Method : Equip electric hoist for carry sample up and down

Type : Storage water tank

power : 220V 50Hz

Accuracy Class : Standard Accuracy

customized support : OEM, ODM

Internal Dimension : 700*700*1200mm

Place of Origin : Guangdong, China

Brand Name : HAIDA

Contact Now

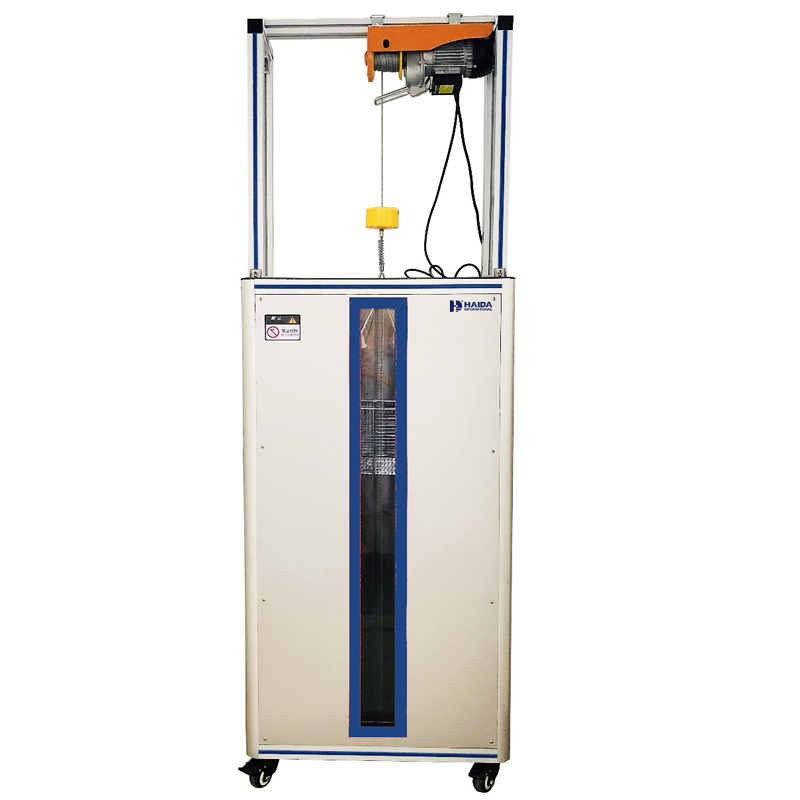

Bypass Diode Water Immersion Tank

Product Overview

The Bypass Diode Water Immersion Tank is designed for comprehensive testing of electronic components and devices under water immersion conditions, ensuring compliance with international safety standards.

Bypass Diode Water Immersion Tank For Precise Temperature Control And Safety

Technical Specifications

Item	Specification
Internal Dimension	700 × 700 × 1200 mm
Test Basket	Equipped with test basket, basket dimension: 500 × 400 × 200 mm
External Dimension	1000 × 1000 × 1320 mm
Max Sample Size	300 × 400 × 100 mm
Sample Lifting Method	Equipped with electric hoist for carrying sample up and down
Sample Weight	Maximum up to 100 kg
Chamber Material	Internal: 304 stainless steel External: Aluminium frame and aluminium-plastic sealing board with transparent observation window (water level display scale: 1 cm)
Power	Single phase, 220V 50Hz
Test Standard	IEC 60529 - IPX7
