Climate Temperature Test Equipment PV Cyclic Salt Spray Room Salt Spray Aging Testing Chamber Machine

Name: Climate Temperature Test Equipment PV Cyclic Salt Spray Room Salt Spray Aging Testing Chamber Machine
Brand: HAIDA
Price: 1 USD

Buy cheap Climate Temperature Test Equipment PV Cyclic Salt Spray Room Salt Spray Aging Testing Chamber Machine product

Type : Testing Machine

Accuracy Class : High Accuracy

Accuracy : ±3%RH

Brand Name : HAIDA

Place of Origin : Guangdong, China

Application : Photovoltaic Testing

customized support : OEM, ODM

power : 380V±10%, 50/60Hz

Protection Class : /

Voltage : 380 V

warranty : 1 Year

Lab volume : 4540L(Not include top sloping roof capacity)

Suitable for sample : 2400*1200mm PV module with 2 pieces

Saturated Tank Temperature : Ambient ~60℃

Chamber Temperature : Ambient ~60℃ (No humidity if temp. below +25℃)

Chamber Temperature fluctuation : ±2℃

Chamber Temperature Uniformity : ±0.5℃

Humidity range : 30% ~ 98%

Temperature fluctuation : ±3%RH

Test Type : NSS,ASS,CASS

Power supply source : Three-phase, 380V±10%, 50/60Hz

MOQ : 1

Contact Now

Climate Temperature Test Equipment PV Cyclic Salt Spray Room Salt Spray Aging Testing Chamber Machine

Product Overview

HD-E808-4C Cyclic Salt Spray Room

Product Features

Double layers sample placing design to improve the usable area of internal chamber
High precision temperature and humidity controller for temperature, humidity and drying tests
Two poles air inlet decompression to ensure stable spray pressure
Spray tower with conical disperser to adjust uniformity and dripping volume of salt fog
Safety protection device with audio alarm and auto stop function
Saturate process for spray compressed air to ensure stable test environment and prevent nozzle blockage
Time controller for automatic power off when setting time arrives

Technical Specifications

Model	HD-E808-4C

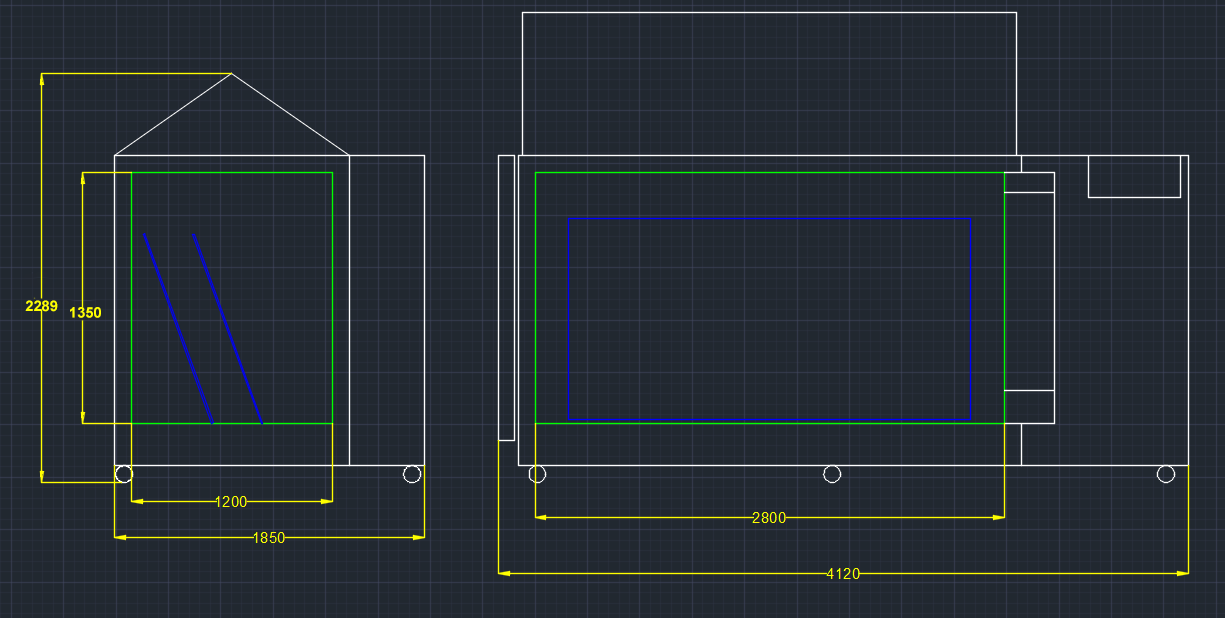

Internal size (LWH)	120028001350mm
External size (LWH)	185041202289mm
Lab volume	4540L (Not include top sloping roof capacity)
Suitable for sample	2400*1200mm PV module with 2 pieces
Saturated Tank Temperature	Ambient ~60℃
Chamber Temperature	Ambient ~60℃ (No humidity if temp. below +25℃)
Chamber Temperature fluctuation	±2℃
Chamber Temperature Uniformity	±0.5℃
Humidity range	30% ~ 98%
Temperature fluctuation	±3%RH
Salt spray test	Concentration of salt solution: 5% Spray quantity: 1.0~2.0 ml/hr/80cm² PH value: 6.5~7.2 (at ambient temperature)
Spraying method	Continuous and Periodic spray type
Multiple safety protection devices	Over pressure protection, over temperature protection, over load fuse protection
Air source	2.5HP Air pump, pump capacity with 60L or above (provided by buyer)
Power supply source	Three-phase, 380V±10%, 50/60Hz
Test Type	NSS, ASS, CASS
Test Standard	IEC 61701:2020 (according IEC 60068-2-52:2027) ASTM G85 ASTM B117

Component Details

Internal Components

Internal chamber	High temperature resistant 8mm PVC, anti-corrosion and easy to clean
Chamber cover	High temperature resistant 8mm PVC, anti-corrosion and easy to clean
Saturated barrel	High temperature and corrosion resistance, equipped with water level indicating device
Heating system	Titanium electric heater, corrosion resistance
Blower	Multi-blade blower
Water pump	Corrosion resistant pump
Solenoid valve	JPA series
Sample shelves	Test Angle: 15° ~ 30°, adjustable
Viewing window	Double vacuum organic glass
Controller	PLC controller, touch screen
Water supply	Automatic water charging system for long time operation

Testing Components

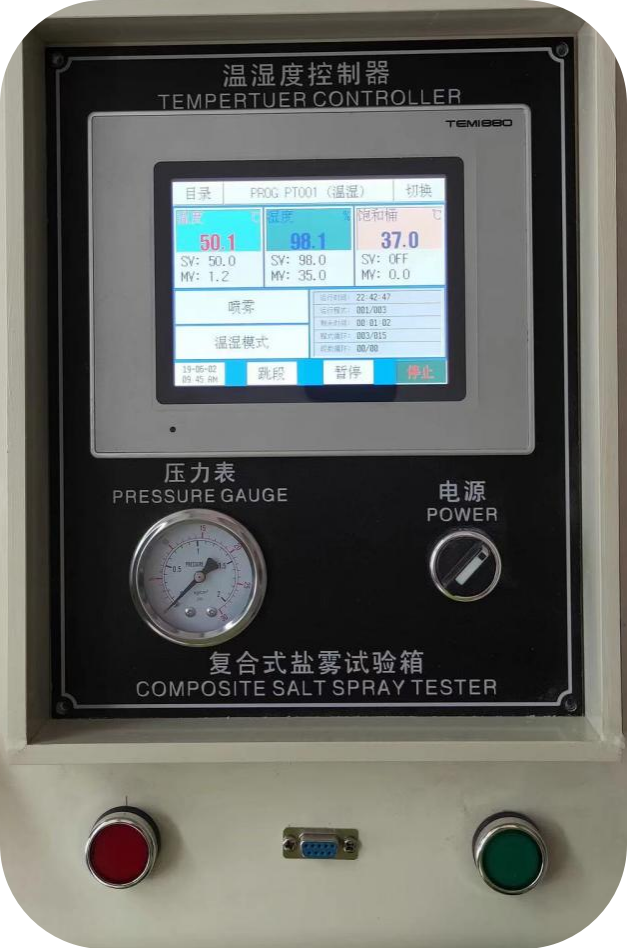

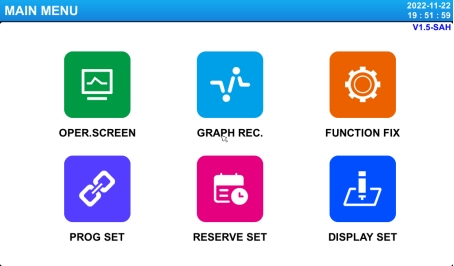

Controller Interface

Company Profile

Our Partners

Our Advantages

Our Service

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days
We can offer operation video and English operation manual
We can provide video-conferencing support

Onsite Service

Device installation
Equipment Operation Test Technology training
Equipment Calibration
Daily maintenance and maintenance of equipment
Free technical training for visiting factories
24-hour Online contact
Free software upgrades

Free Information Provided

Product Instruction
Product operation instruction/video
Experiment Test (test application, test report)

Device Problem Handling

Social media 24 hours online communication
Mail Seamless Docking
Video Conferencing
Artificial free door-to-door service
