PV Potential Induced Degradation(PID) Testing Machine Photovoltaic Module Humid and High-Temperature Simulation Tester Equipment

Type : Testing Machine

Accuracy Class : High Accuracy

Accuracy : 0.5%

Brand Name : HAIDA

Place of Origin : Guangdong, China

Application : Photovoltaic Module Testing, PV Simulation Testing, PV Humid Testing, Humid and High-Temperature Testing, PID

customized support : OEM, ODM

power : 220V, 50Hz

Protection Class : /

Voltage : 220 V

warranty : 1 Year

Voltage range : -2000V ~ 2000V

Voltage resolution : 1V

Voltage accuracy : ±3% (referencing CNAS-CL01-A021:2018)

Voltage tolerance : 0.5% (referencing IEC 62804-1-1:2020)

Current measurement range : 0~1mA Resolution: 0.01μA (as specified in IEC 62804-1-1:2020)

Acquisition interval : ≤5min(adjustable at software)

Power : Single phase, 220V, 50Hz

MOQ : 1

Contact Now

PV Potential Induced Degradation (PID) Testing Machine
Product Overview

The Photovoltaic Module Humid and High-Temperature Simulation Tester Equipment evaluates the ability of photovoltaic modules to resist potential-induced deterioration by simulating harsh electric field and humid heat conditions.

PV Potential Induced Degradation(PID) Testing Machine Photovoltaic Module Humid and High-Temperature Simulation Tester Equipment PV Potential Induced Degradation(PID) Testing Machine Photovoltaic Module Humid and High-Temperature Simulation Tester Equipment
HD-E900 Potential Induced Degradation (PID) Test Machine
Technical Specifications
Parameter Specification
DC Regulated Power Supply 12 channels (Independently monitoring and control)
Each channel can independently control voltage polarity
Voltage Range -2000V ~ 2000V
Voltage Resolution 1V
Voltage Stability For continuous output of 1000V, 1500V, and 2000V, voltage fluctuation ≤2% within 500 hours
Connection Method Module frame grounded, connector shorted and connected to high-voltage terminal; for negative voltage testing and positive voltage recovery, only switch toggling needed
Voltage Application Method 20 power channels operate independently, capable of outputting different polarities and voltages
Voltage Accuracy ±3% (referencing CNAS-CL01-A021:2018)
Voltage Tolerance 0.5% (referencing IEC 62804-1-1:2020)
Current Measurement Range 0~1mA
Resolution: 0.01μA (as specified in IEC 62804-1-1:2020)
Acquisition Interval ≤5min (adjustable via software)
Safety Protection Features Overcurrent alarm, overvoltage alarm, overtemperature alarm, communication interface with environmental test chamber
Power Single phase, 220V, 50Hz
Test Standards Compliance
  • IEC61215-2: 2021 MQT 21 Potential Induced Degradation Test
  • IEC 62804-1-1:2020 "Photovoltaic (PV) modules - Test methods for the detection of potential-induced degradation Part 1-1 Crystalline silicon - Delamination"
  • IEC 63209:2019 Extended-stress testing of photovoltaic modules
PV Potential Induced Degradation(PID) Testing Machine Photovoltaic Module Humid and High-Temperature Simulation Tester Equipment PV Potential Induced Degradation(PID) Testing Machine Photovoltaic Module Humid and High-Temperature Simulation Tester Equipment

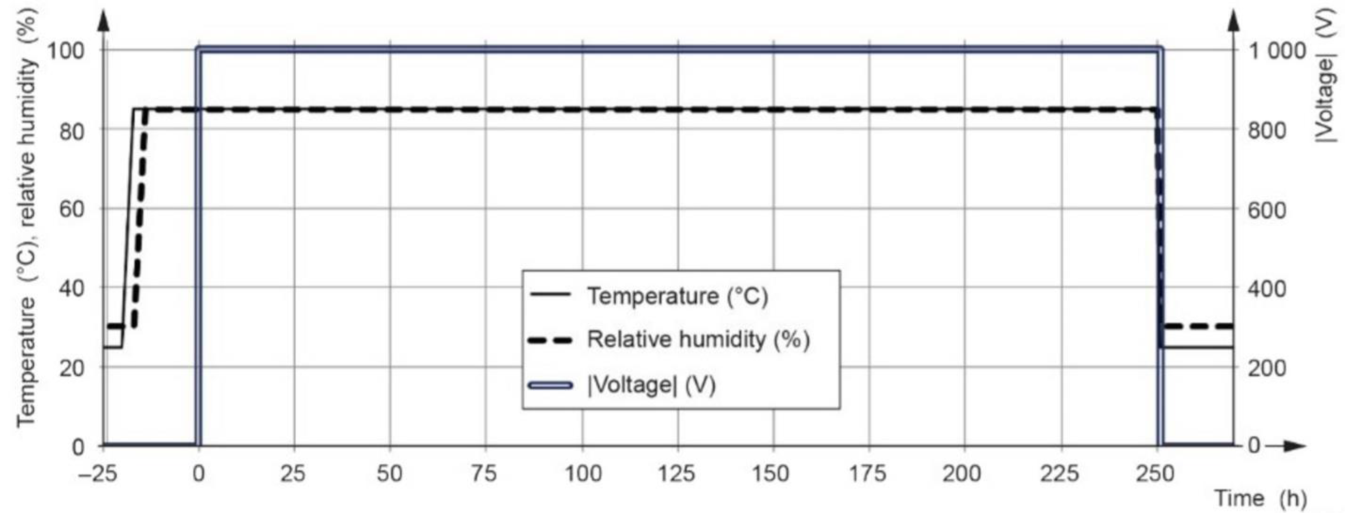

IEC 62804-1-1:2020 Test Cycle (Note: to achieve temperature and humidity control, test cycle requires combination with climate chamber)

PV Potential Induced Degradation(PID) Testing Machine Photovoltaic Module Humid and High-Temperature Simulation Tester Equipment PV Potential Induced Degradation(PID) Testing Machine Photovoltaic Module Humid and High-Temperature Simulation Tester Equipment

Main Interface

Company Profile
PV Potential Induced Degradation(PID) Testing Machine Photovoltaic Module Humid and High-Temperature Simulation Tester Equipment PV Potential Induced Degradation(PID) Testing Machine Photovoltaic Module Humid and High-Temperature Simulation Tester Equipment
Our Partners
PV Potential Induced Degradation(PID) Testing Machine Photovoltaic Module Humid and High-Temperature Simulation Tester Equipment PV Potential Induced Degradation(PID) Testing Machine Photovoltaic Module Humid and High-Temperature Simulation Tester Equipment
Our Service Advantages
Remote Support Services
  • If you face any problems during testing process, we promise to reply within 48 hours and provide solutions within 3 working days
  • We provide operation videos and English operation manuals
  • We offer video conference support
Onsite Services
  • Device installation
  • Equipment Operation Test Technology training
  • Equipment Calibration
  • Daily maintenance and equipment upkeep
  • Free technical training for visiting factories
  • 24-hour Online contact
  • Free software upgrades
Documentation & Resources
  • Product Instruction manuals
  • Product operation instructions and videos
  • Experiment Test documentation (test applications, test reports)
Device Problem Resolution
  • Social media 24 hours online communication
  • Seamless email support
  • Video conferencing assistance
  • Free door-to-door technical service
