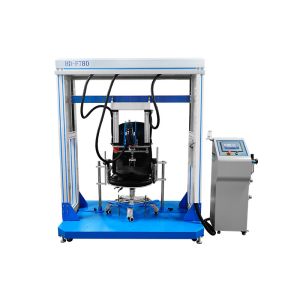

Professional Furniture Testing Machines For Office Chair Back Durability
GENERL SPECIFICATIONS
Machine Dimensions: (W x D x H) 2750*1510*1350 mm
Power supply source: single-phase, AC220V±10%, 50/60Hz (can be appointed)
Gross Weight: 750kg
EQUIPMENT DESCRIPTION
The machine is designed to test seating and back by specified load block with setting force and speed to assess chair seating and back durability.
DESIGN STANDARD: EN 1728; EN 1335; BifmaX5.4
STANDARD FEATURES
| Item | Description |
| Back Sensor | 200KG |
| Seat Sensor | 500KG |
| Force Actuator Height(Adjustable) | 500-1200mm |
| Test Sample Seat Height (Adjustable) | 300～600mm |
| Control system | PLC, Programmable controller |
| Display | Touch Screen |
| Back load | 50~110KG |
| Seat load | 100~300KG |
| Air Power | ≥0.6MPa |
| Test speed(Adjustable) | 1～30 time /min |
| Test Times(Adjustable) | 1~999999times |
| | |
CONFIGURATION:
| Configuration | Name | Details |
| Items | Documents | Operation Manual*1 piece; Factory Inspection Report*1piece; Operation Video in USB flash disk with machine*1 piece |
| Power line | 1 piece |
| Plug | 1 piece(Per your local plug standard) |
| USB flash disk | 1G capacity *1 piece |
| Air Pipe | 1 piece |
| Load Sensor | 200kg Capacity *1 piece |
| Load Sensor | 500kg Capacity *1 piece |
| Screw combination | 2 Sets |
| PLC System | 1 set |
| Cylinder | 2 sets |
| “L” type Chair blocker | 2 sets |
| Back Plate | 1 piece |
| Chair leg Ficture | Leg *1 piece; Arm*1 piece; Seat *1 pieces |
